GT Gear Motors and Gearbox (Gear Units)

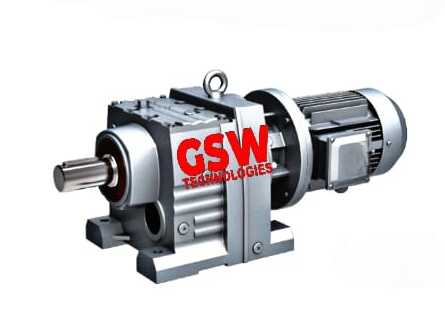

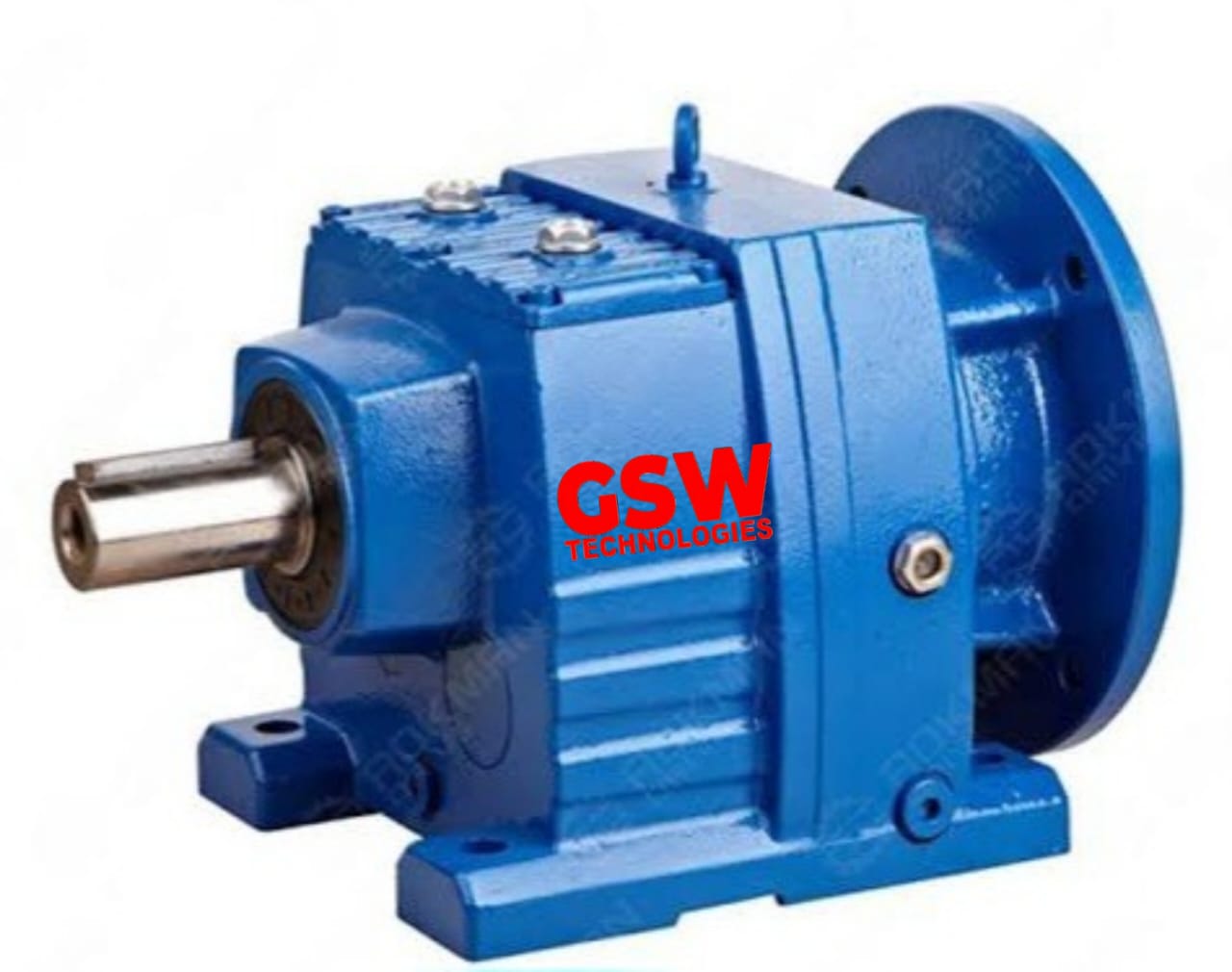

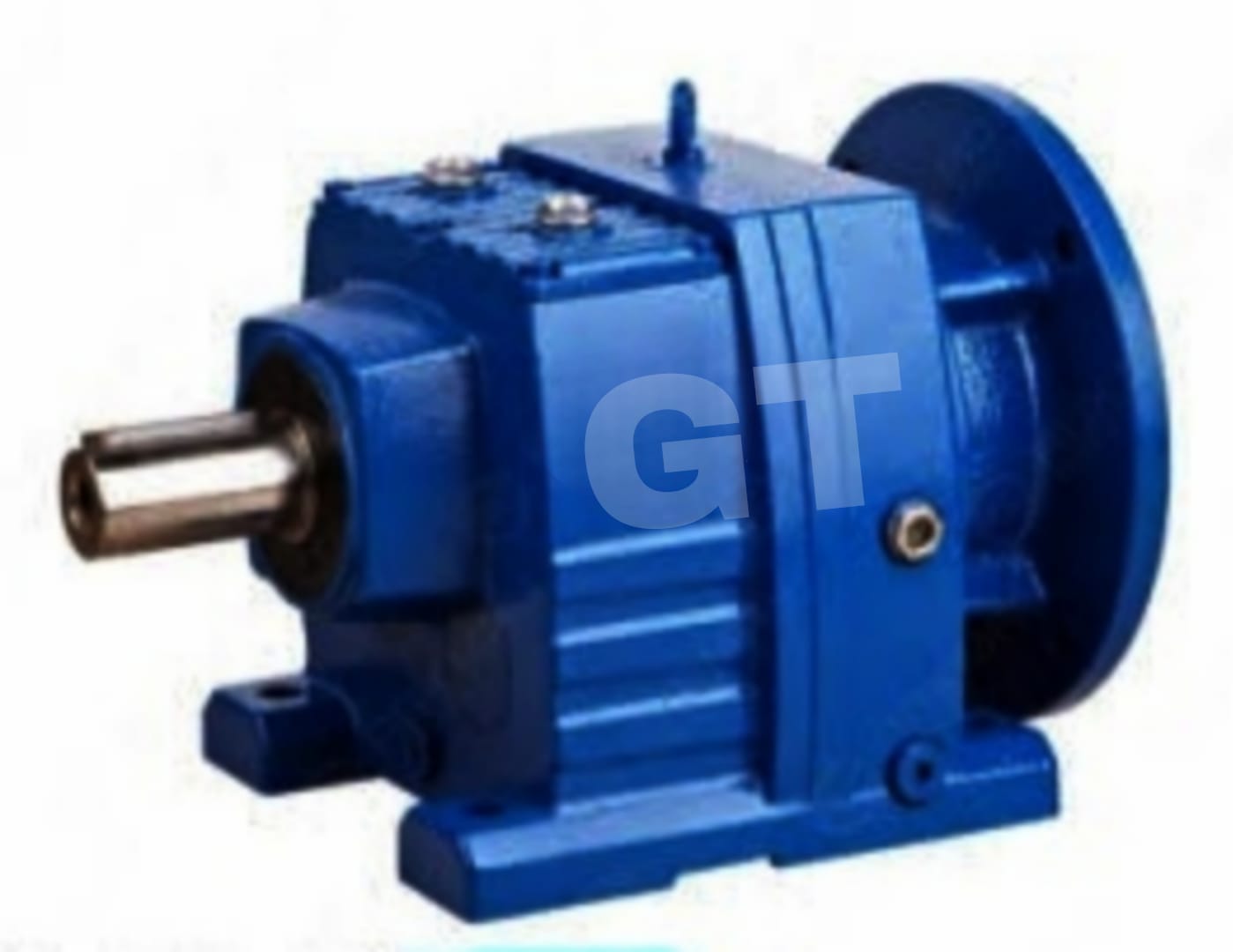

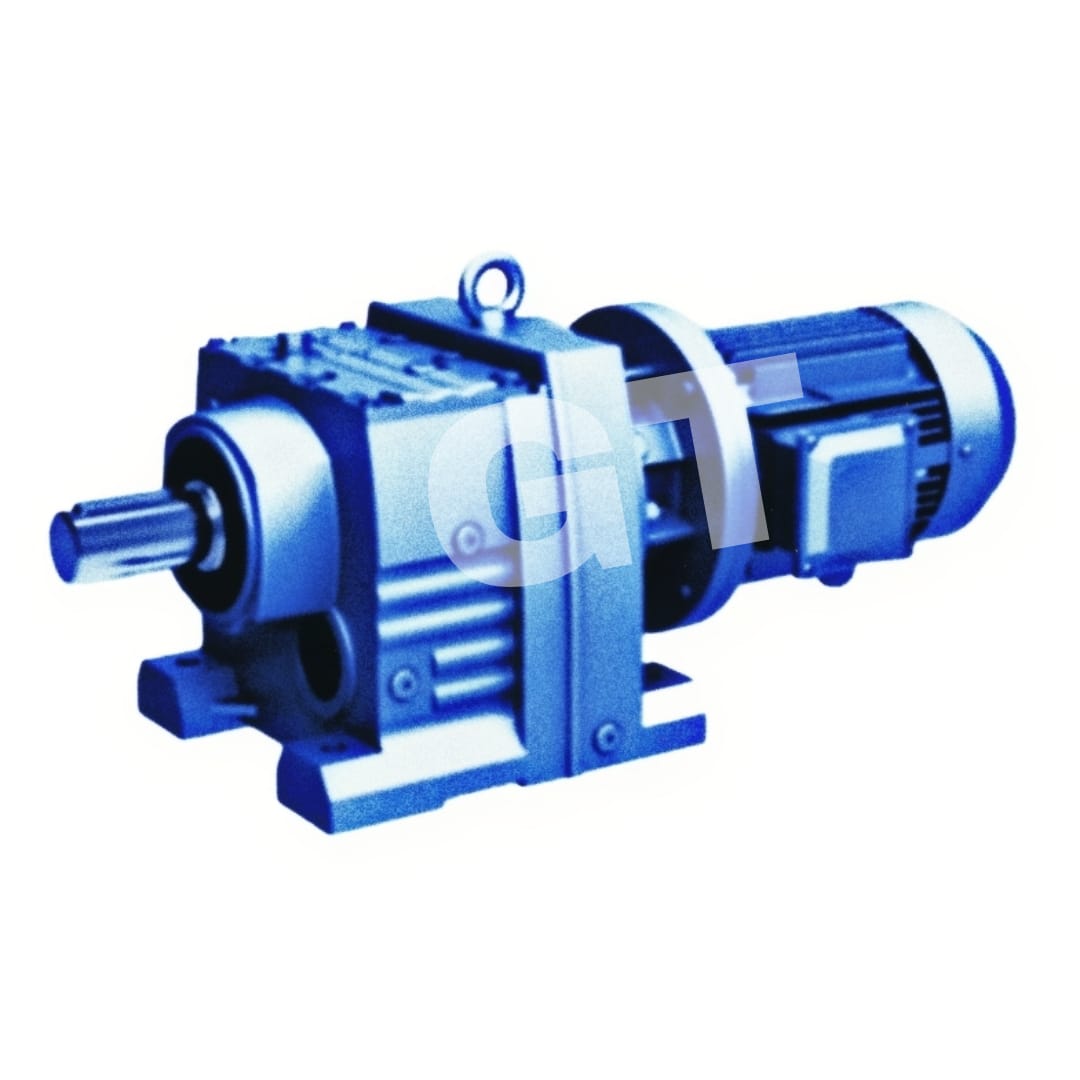

Single-stage series GTRX as well as two and three-stage coaxial design of the GTR series with high permissible over hung loads and GTRM-series is for Agitator applications. Available as foot-mounted and flange mounted versions. Output torque [Nm] up to 19000. Our complete range of helical GT gear motor & GT gearbox provide the optimum size and power solution for every drive task. And for operators with a “weight-watching” issue, our multi-stage
GTRM gear motors with extended output bearing hub are a special type of helical gear motor. They were designed especially for agitating applications and allow for high overhung and axial loads

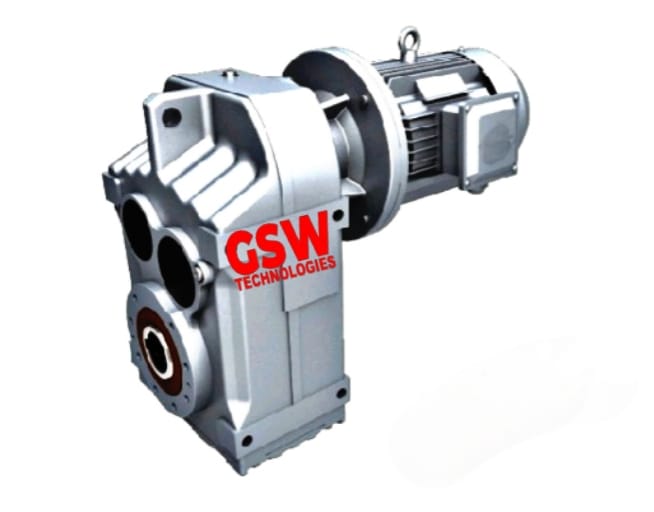

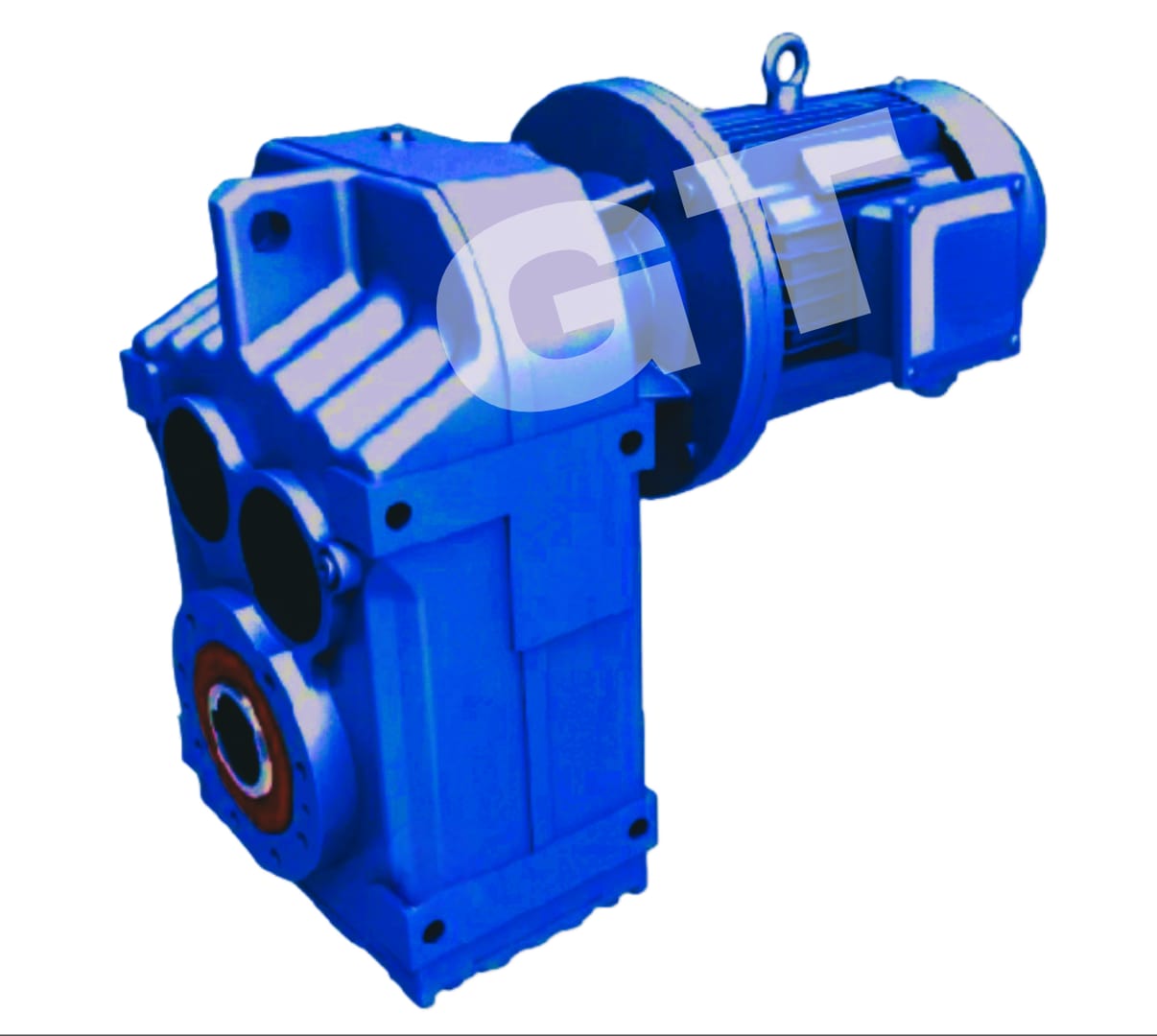

Particularly slim helical geared motors of the F series with parallel shafts for mounting, wherever space is limited. Available as foot flange and shaft mounted versions. Output torque [Nm] up to 19000. Where installation space is limited, the slim-lined parallel shaft helical gear motors & GT gear box cut a particularly food figure. The wide torque range providing torque from 120 to 19000 Nm, and the many different sizes and designs means that even under the most unfavorable conditions, a wide variety of application can be catered for. A standard drive that is not only favored because of its constructional properties.

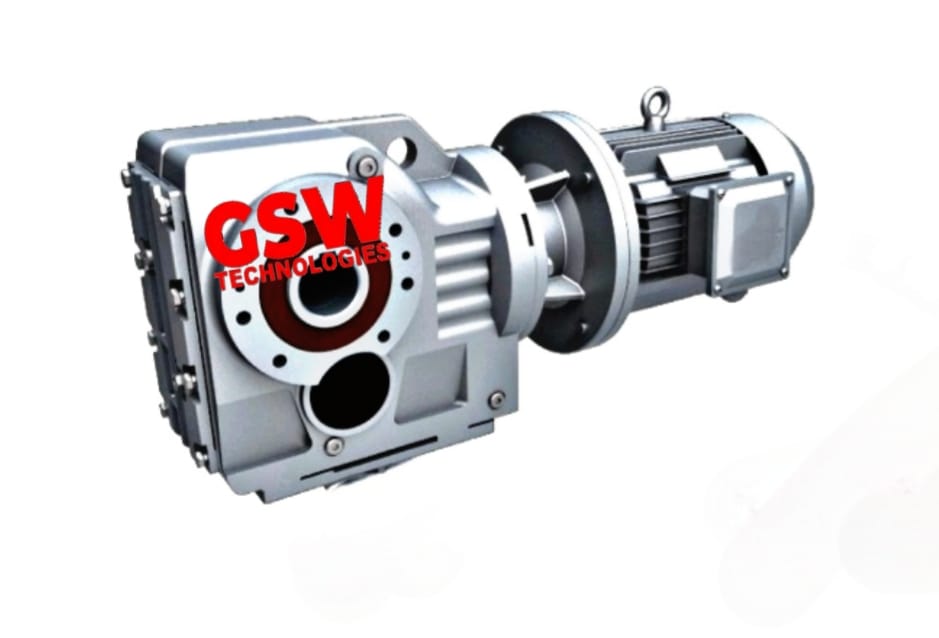

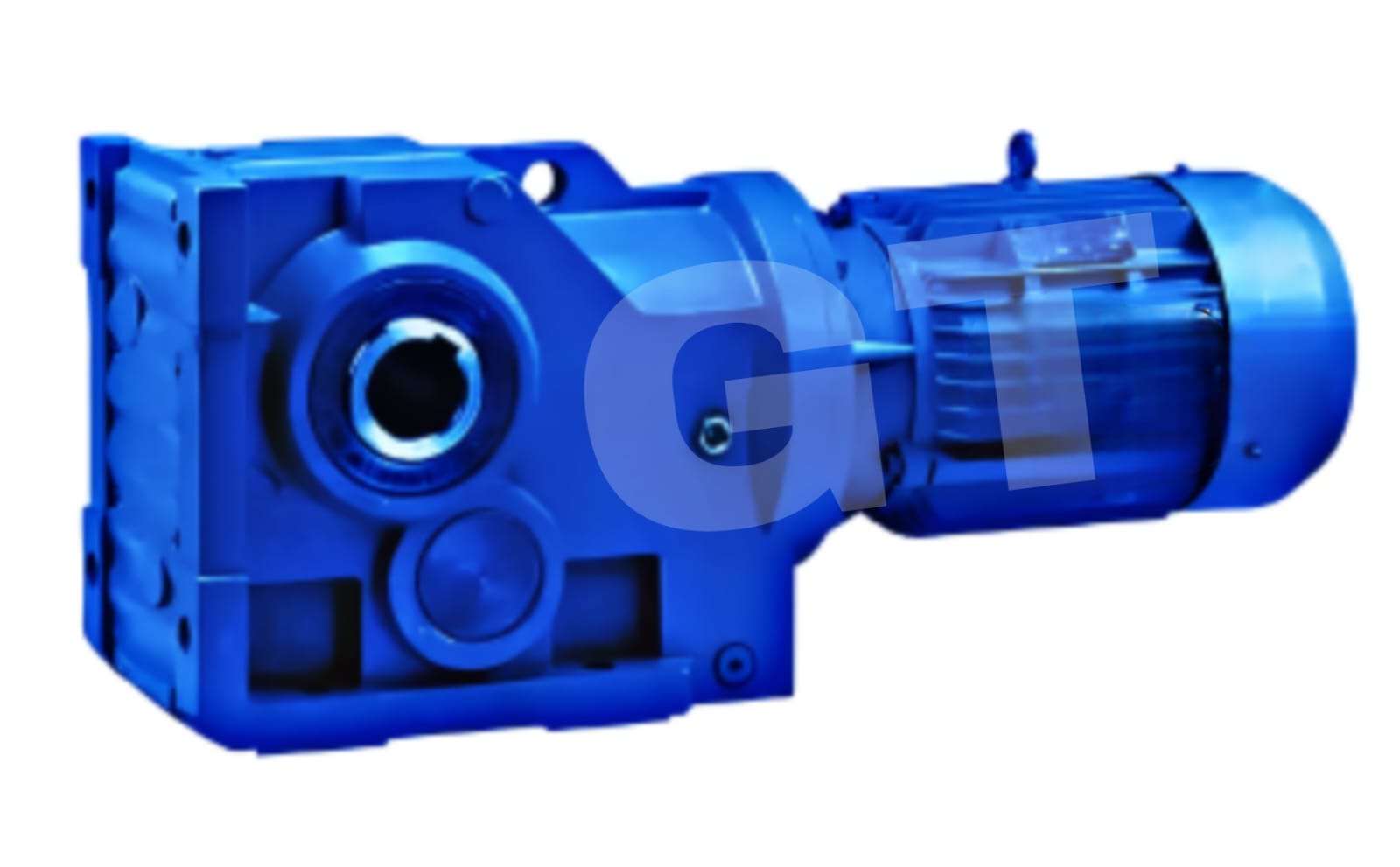

Three - stage helical-bevel-helical geared motors of the K series with a high efficiency in both torque directions and high-endurance gearing. Available as foot-, flange-and shaft mounted versions. Output torque [Nm] up to 55000. The principle of compact design as applied to the generation of 7 series units is most clearly represented by the helical-bevel gear unit. These units are sophisticated angular gear units for all mechanical engineering applications demanding space-saving installation. At the same time they also provide a powerful torque range extending from 220 to 55000 Nm.

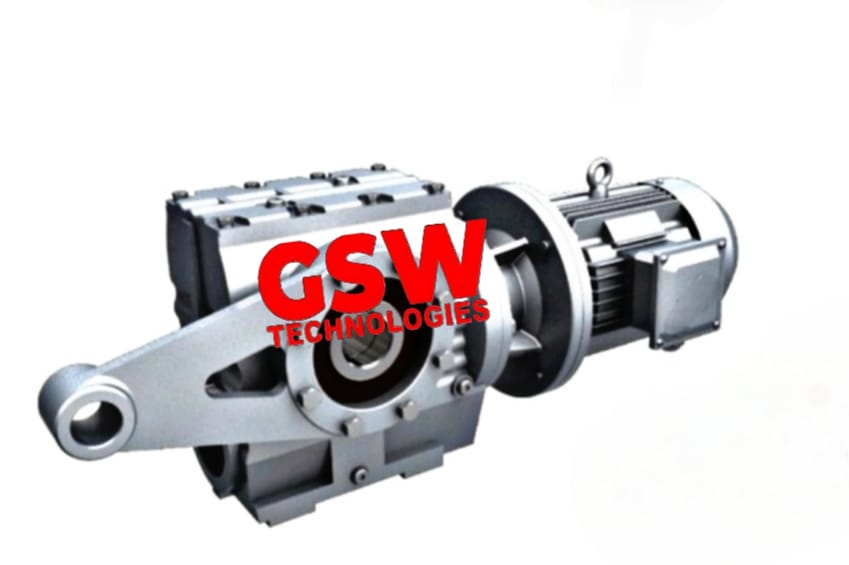

Two-stage helical-worm gear units of the S series with a high reduction ratio in the worm gear stage and extremely low-noise operation. Output torque [Nm] up to 4500. Due to their excellent economic efficiency, these drives can be used in every branch of industry - tailored individually to torque and speed requirements. The gear ratios afforded by the worm gear stage, and the low noise levels during operations make these GT gear motors ideal low-cost solution for simple applications. and yet, they can deliver quite a powerful performance: the torque ranges from 95 to 4500 Nm.

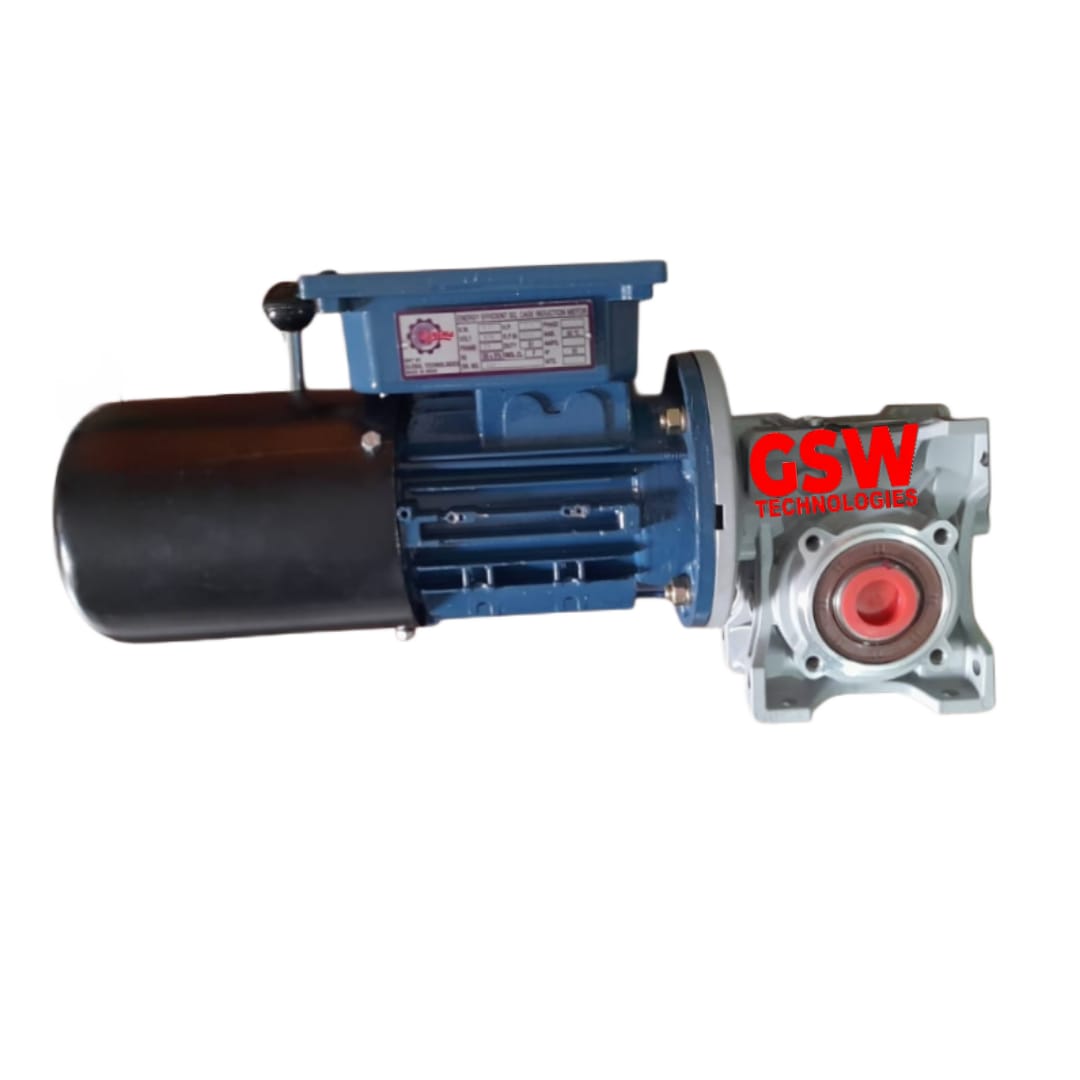

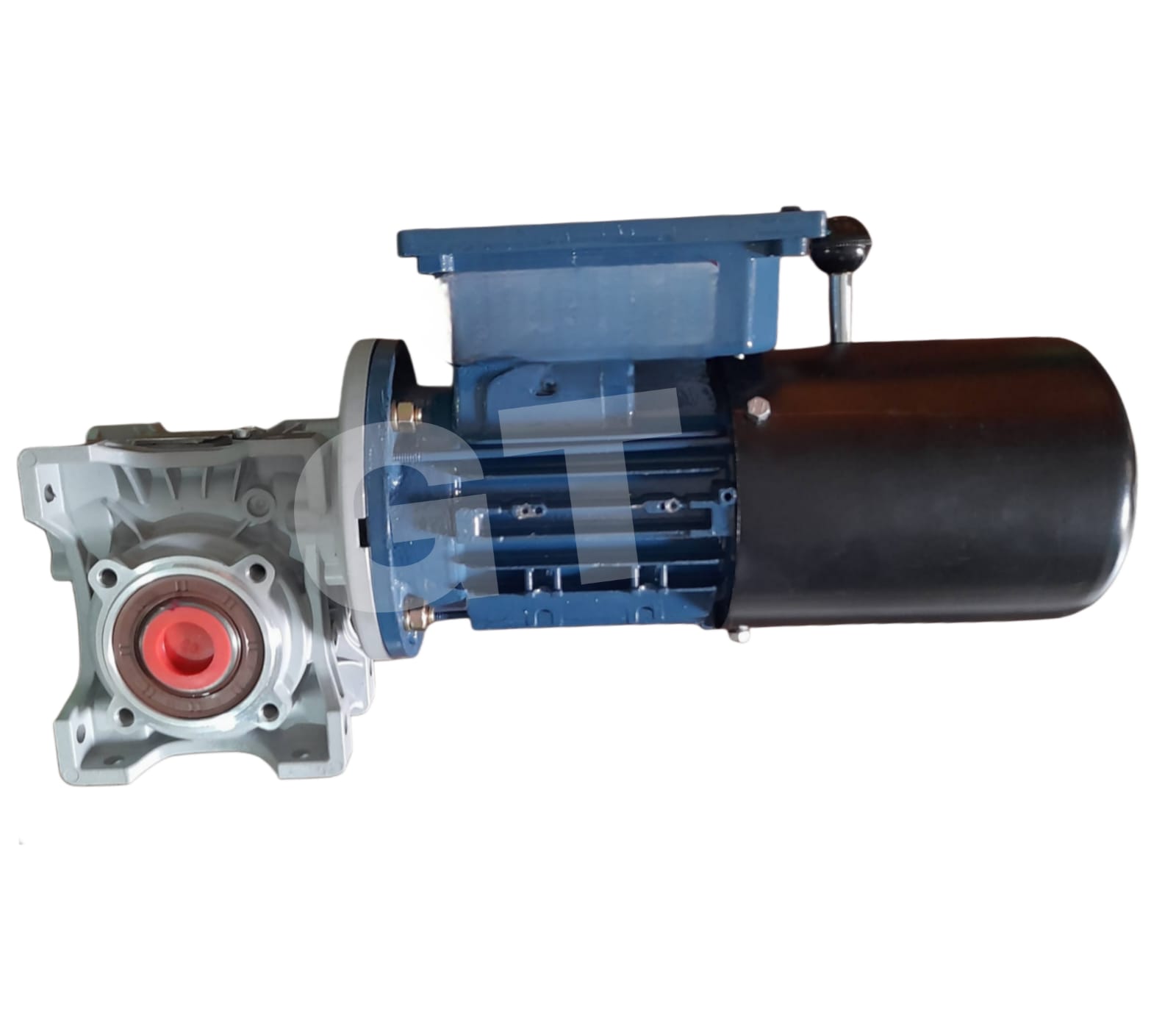

GTW Worm gears of the GTW series are milestones for the industry worldwide. They succeeded in combining uncompromising quality with stat-of-the art technology and reown price effectiveness. Absolute flexibility is given by the wide choice of several mounting options, shaft configuration and motor interfaces, all offered as standard. The helical-worm and the double-worm version. with or without the torque limiter, also add up, creating a highly versatile drive system.
Torque Range : 12 Nm.. to 7500 Nm.

Two-stage helical-worm gearbox of the S series with a high reduction ratio in the worm gear stage and extremely low-noise operation. Output torque [Nm] up to 4500. Due to their excellent economic efficiency, these drives can be used in every branch of industry - tailored individually to torque and speed requirements. The gear ratios afforded by the worm gear stage, and the low noise levels during operations make these gearmotors ideal low-cost solution for simple applications. and yet, they can deliver quite a powerful performance: the torque ranges from 95 to 4500 Nm.
