Bonfiglioli Gear Motors, Gearbox (Gear Units)

The dependable and performing solution for all in-line drive applications featuring unsurpassed Quality to Price ratio. Foot or flange mounting are possible in any mounting position, making the installation easier than ever.

Sizes	AS 16 - AS 100
Transmissible torque	30 Nm.. 7.200 Nm
Rated power	(n1 = 1400min)
Gear ratios	in = 4,5... 185
Output Configurations	Solid keyed shaft
Input Configurations	IEC motor mounting provision, Solid Input Shaft
Applicable motors	IEC-normalized Motors, up to 45 kw Single and Dual Speed Motor
Main Brake Features	DC or AC Supply Fast Braking and / or brake releasing through SB, NBR, SBR optional electronic devices
Main Motor Options	Thermistors and Thermostats sensor, Forced Ventilation, Line Driver and Push-Pull Incremental Encoder

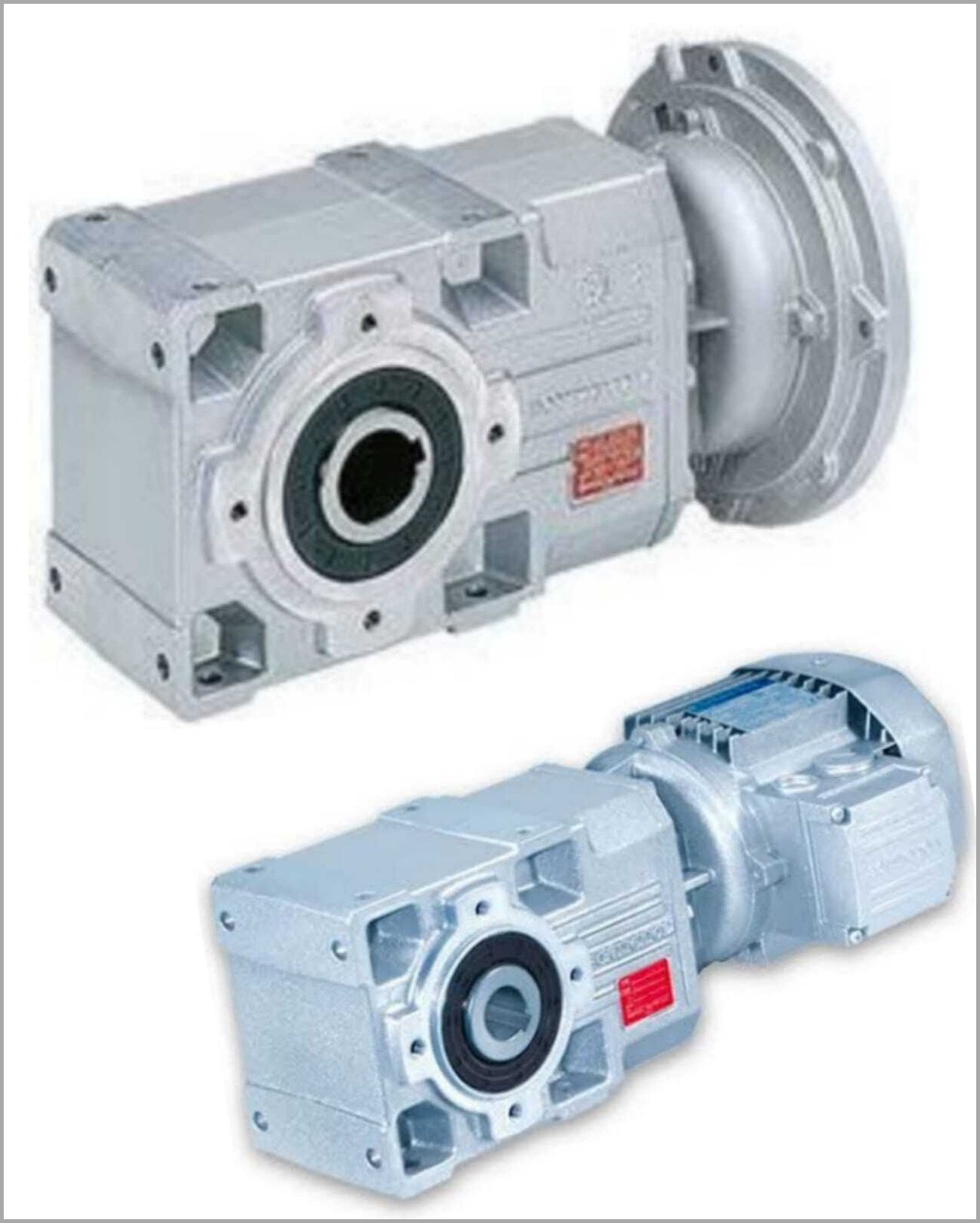

The A series is the first product to prove equally good in regard efficiency and versatility within a highly competitive context, both performance and price-wise

Sizes	A 05 - A 100
Torque Range	150 Nm... 14,000 Nm
Mechanical Rating (n = 1400 min–1)	0,22kW... 150 kW
Gear ratios	5,4,….1715
Output Configurations	Foot and shaft mount - Two Bore options per size, Keyless shrink disc fitting, Solid output shaft
Input Configurations	IEC- and NEMA Motor Adaptors Solid input shaft with key
Applicable motors	Motors and Integrated Brake motors - M series, IEC – normalized Motors and Brake motors - BN series, Single and Dual Speed Motors
Main Brake Features	DC or AC Supply, Fast Braking and / or brake releasing through SB, NBR, SBR optional electronic devices
Main Motor Options	Thermistors and Thermostats sensor, Forced Ventilation, Line Driver and Push-Pull Incremental Encoder

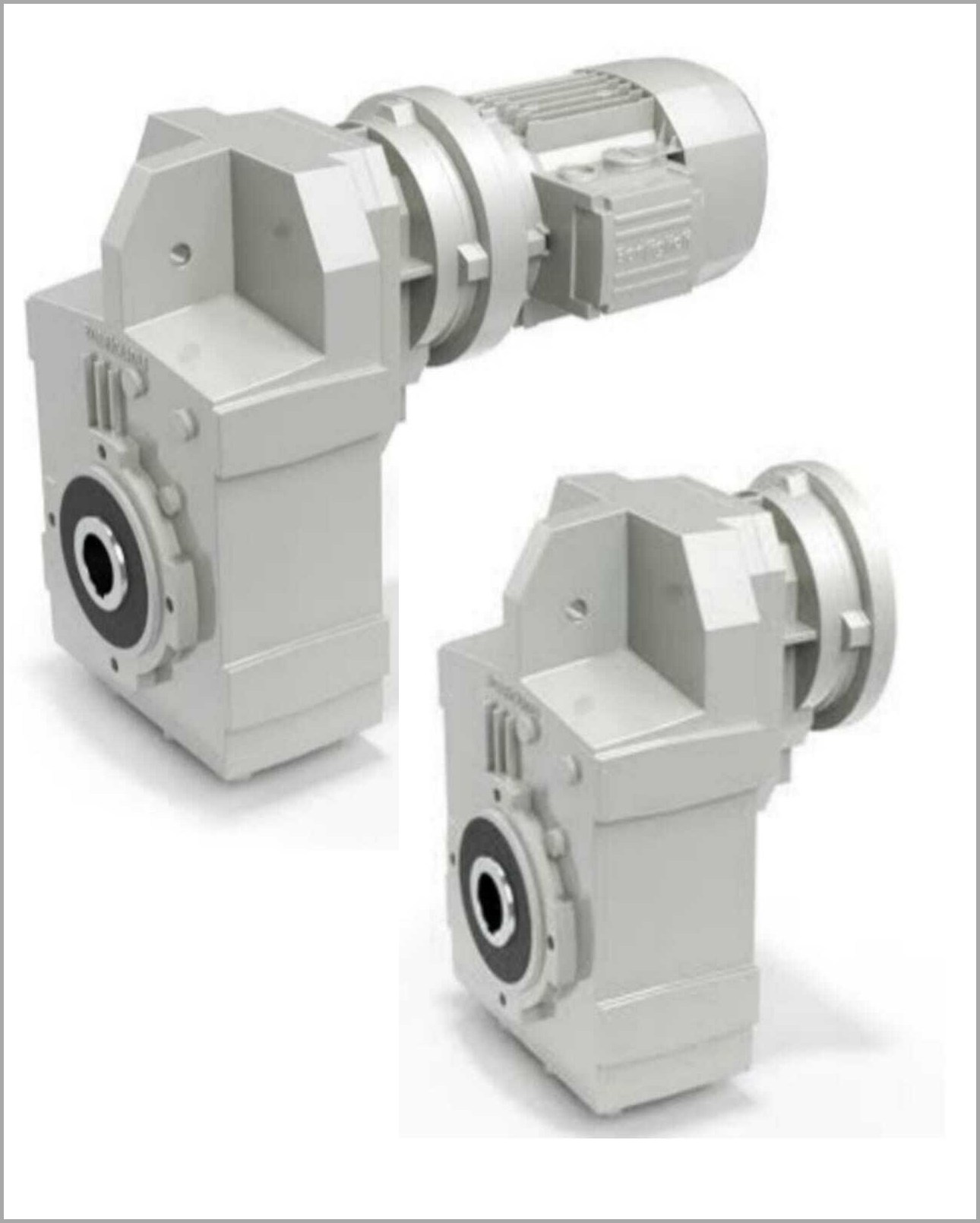

No better, easier and neat installation than with a shaft mounted unit of the F series. Lightweight and performing, an F unit is the dependable drive for all the material handling application

Sizes	F 10 - F 100
Torque Range	140 Nm... 14,000 Nm
Mechanical Rating (n = 1400 min–1)	0,17kW... 125 kW
Gear ratios	6,4 ... 2099
Output Configurations	Keyed Hollow Shaft - Two Bore Options per Size, Keyless Shrink Disc Fitting, Plug-in Solid Output Shaft as on Option
Input Configurations	IEC-normalized Motor Adaptors Solid Input Shaft
Applicable AC motors	Motors and Brake motors - M series, IEC - normalized Motors, Brake motors - BN series, Single and Dual Speed Motors
Main Brake Features	DC and AC Supply Faster Brake Engage / Disengage through Electronically controlled AC / DC Rectifier type SB, NBR, SBR (option)
Main Motor Options	Thermistors and Thermostats sensors, Separate Supply Forced Ventilation, Line Driver And Push – Pull Incremental Encoder

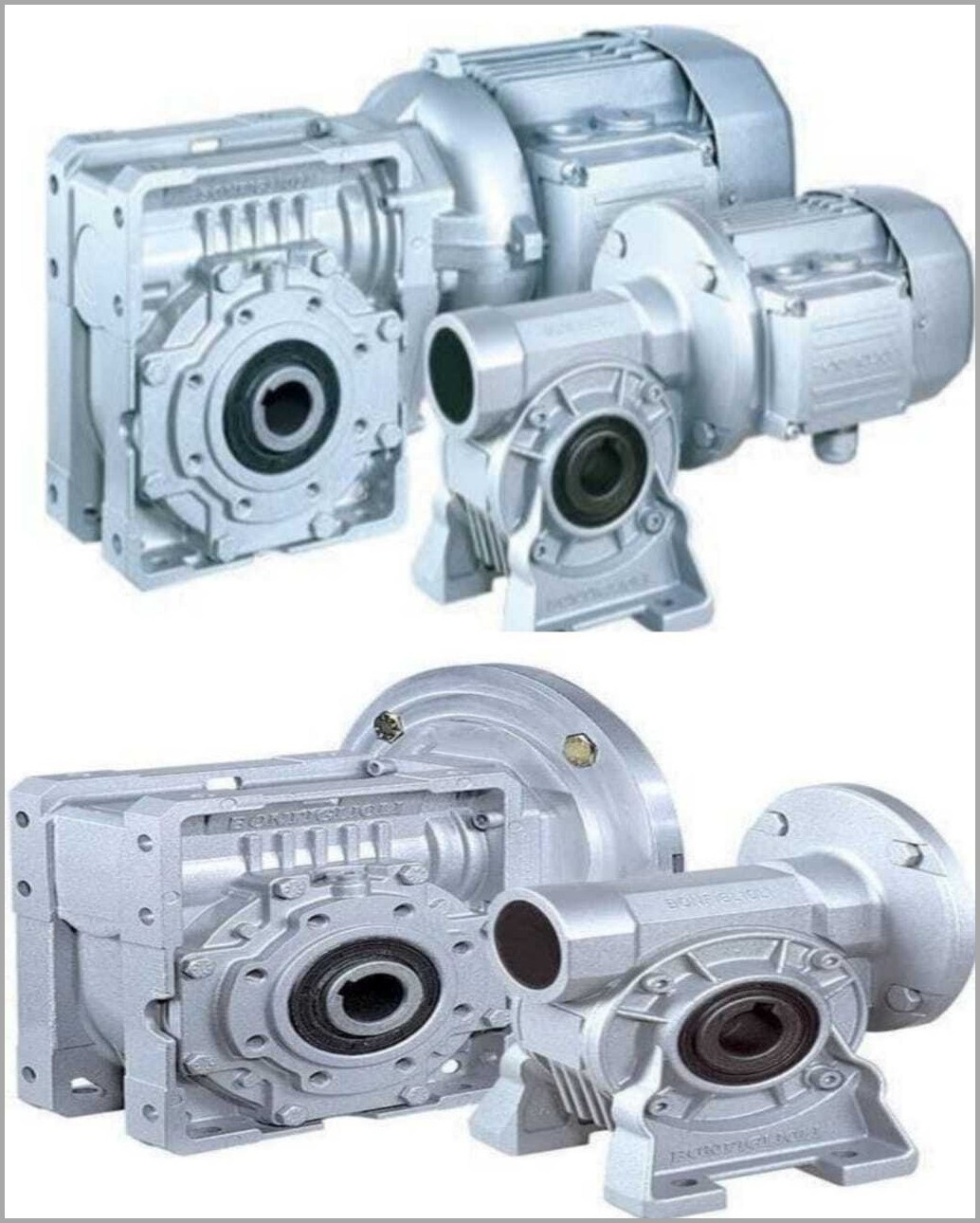

Wormgears of the VF and W series are milestones for the industry worlwide. They succeeded in combining uncompromising quality with stat-of-the art technology and reown price effectiveness. Absolute flexibility is given by the wide choice of several mounting options, shaft configuration and motor interfaces, all offered as stan- dard. The helical-worm and the double-worm versions, with or without the torque limiter, also add up, creating a highly versatile drive system

Sizes	VF 27 - VF 250 W 63 - W 110
Torque Range	13 Nm... 7,100 Nm
Mechanical Rating (n = 1400 min–1)	0,4kW... 75 kW
Gear ratios	7….10,000
Output Configurations	Keyed Hollow Shaft, Plug-in solid output shaft, Torque limiter as an option
Input Configurations	VF and W: IEC- standard motor adaptors, VF and W: Solid Input Shaft, W: Integral gearmotor
Applicable AC motors	VF and W: IEC - standard motors and brake motors - BN series, W: Compact motors series M, Single and dual speed motors
Main Brake Features	DC and AC Supply, Faster Brake Engage / Disengage through Electronically Controlled AC/DC Rectifier type SB, NBR, SBR (options)
Main Motor Options	Thermistors and Thermostats sensors, Separate Supply Forced Ventilation, Line Driver And Push – Pull Incremental Encoder

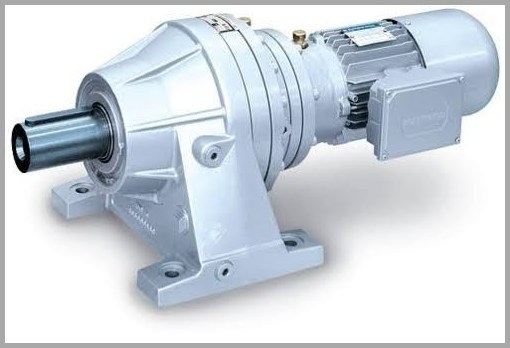

Their planetary drive train makes them the ideal choice for all the severe duty applications where shock loadings and impacts are more the rule than the exception.
The product configuration is highly versatile, due to several options as far as the mounting, the gear layout, the output shaft and the motor interface.
All the features are available for each of the 16 finely spaced frame sizes, spanning over the 1,00-450.000 Nm torque range.
Finding the perfect match to any drive problem is therefore more than a wish, it is something users can safely rely on – always.

Type	300 - 321
Torque Range	1000 - 500.000 Nm
Transmissible Mechanical Power	upto 450 kW
Reduction Ratios Range	1:3,4 to 5.000
Gear Unit Version	In line, Right angle (with bevel gear pair Gleason)
Output Configurations	Foot and flange mounted, Output shaft: solid with key, splined, splined hollow,hollow shaft with shrink disc
Gear Unit Input Configurations	IEC-normalized Motor Adaptors, Solid Input Shaft
Applicable AC motors	Compact motors and brake motors M series, IEC motors and brake motors BN series, Single and dual speed motors
Main Brake Motor Features	DC and AC Supply, Faster Brake Engage and/or brake releasing through SB, NBR, SBR optional electronic devices
Main Motor Options	Thermistors and Thermostats sensors, Servo Ventilation, Line driver and push-pull incremental encoder

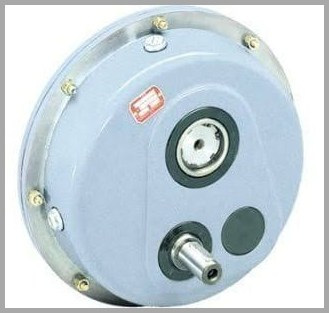

The TA series has long established itself in the industry until become a best seller for the construction industry, quarry and mine applications where absolute reliability and low maintenance are key factors. Also appreciated is the backstop option that prevents backdriving in case of inclined conveyors and mounting rigidity achieved with the Torque Arm.

Type	TA 30 - TA 125
Torque Range (n1= 900 min ¹)	150 Nm.., 16,000 Nm
Mechanical Rating (n1 = 900 min-1)	1,1 kw... 156 kw
Gear ratios	IN=5,0...31,5
Output Shaft	Keyed hollow shaft Up to three bore options per frame size
Gearcase	Sturdy cast housing suitable for outdoor installation
Backstop	Available on all frame sizes externally accessible

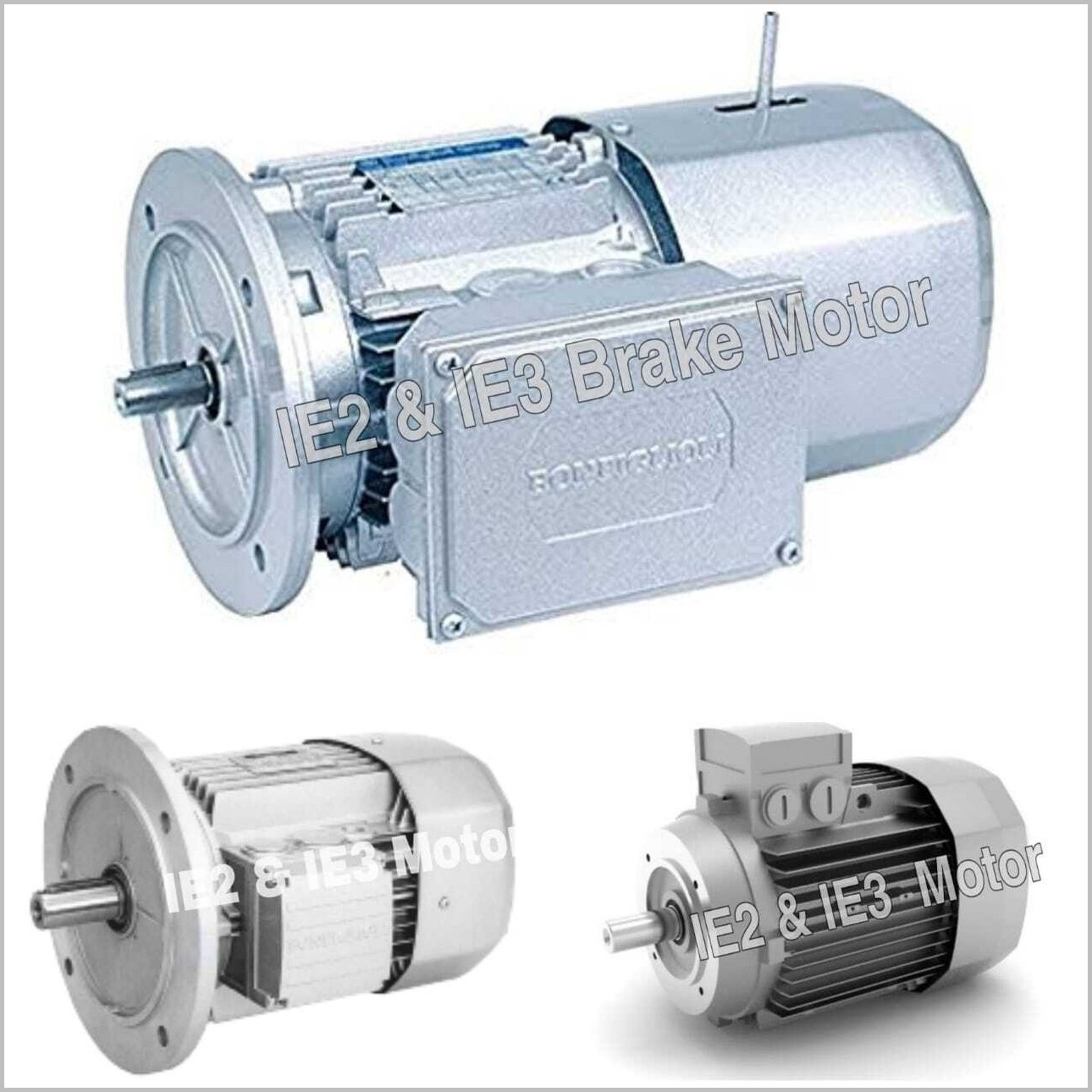

The IEC-normalised BN motors comply with all the applicable international standards, including the EMC and LV directives.
They are available in the 0.06 – 30 kW range in the flange mounting version, in both the IM B5 and the IM B14 configuration.
Single and dual pole versions available with generally, three brake options offered, one DC and two AC supply, lending further flexibility to the system.
Finally, all motors are inverter duty
